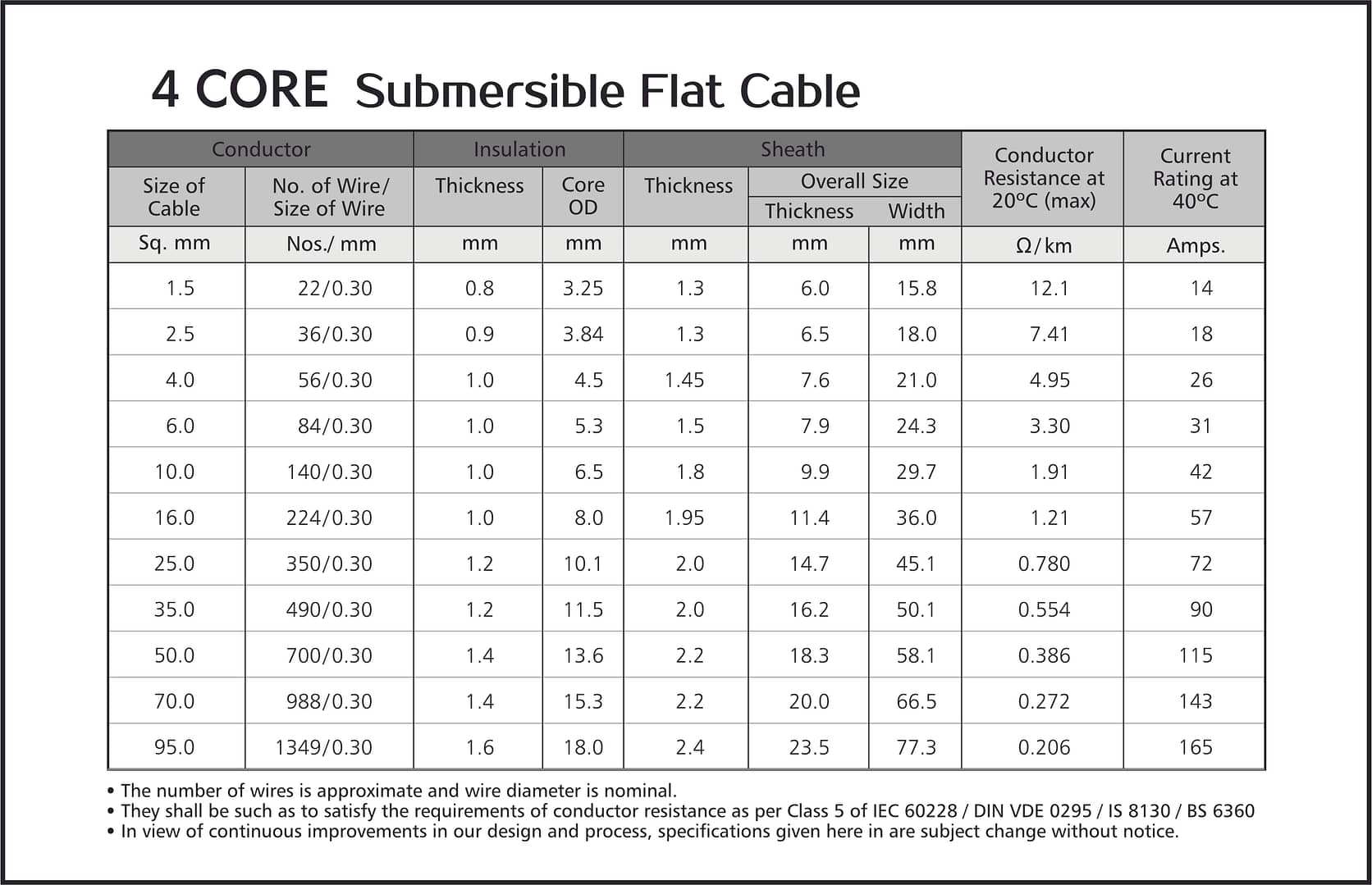

4 Core Submersible Flat Cable
4 Core Submersible Flat Cable
– Operating Temperature :- -10°C to max. +90°C
– Nominal voltage :- 1.1 KV
– Test voltage :- 3.0 KV
– Bending radius :- 6 X cable diameter
– BS 6500, IS 694:2010
– Conductor :- Bare bunch copper IS: 8130
– Insulation :- PVC As per IS: 5831
– Outer sheath :- PVC As per IS: 5831
– Ideal for irrigation Pumps
– Drinking water supply pumps
– Submersible pump motor power supply
– As per IS : 694:2010 :- Red, yellow, blue, green/black
– As per IEC:60227 :- Black, light blue , brown, yellow with green line/ green with yellow line
– High flexibility
– Excellent resistance to moisture, abrasion, grace & oil
– Long Life
– Excellent mechanical & electrical properties
