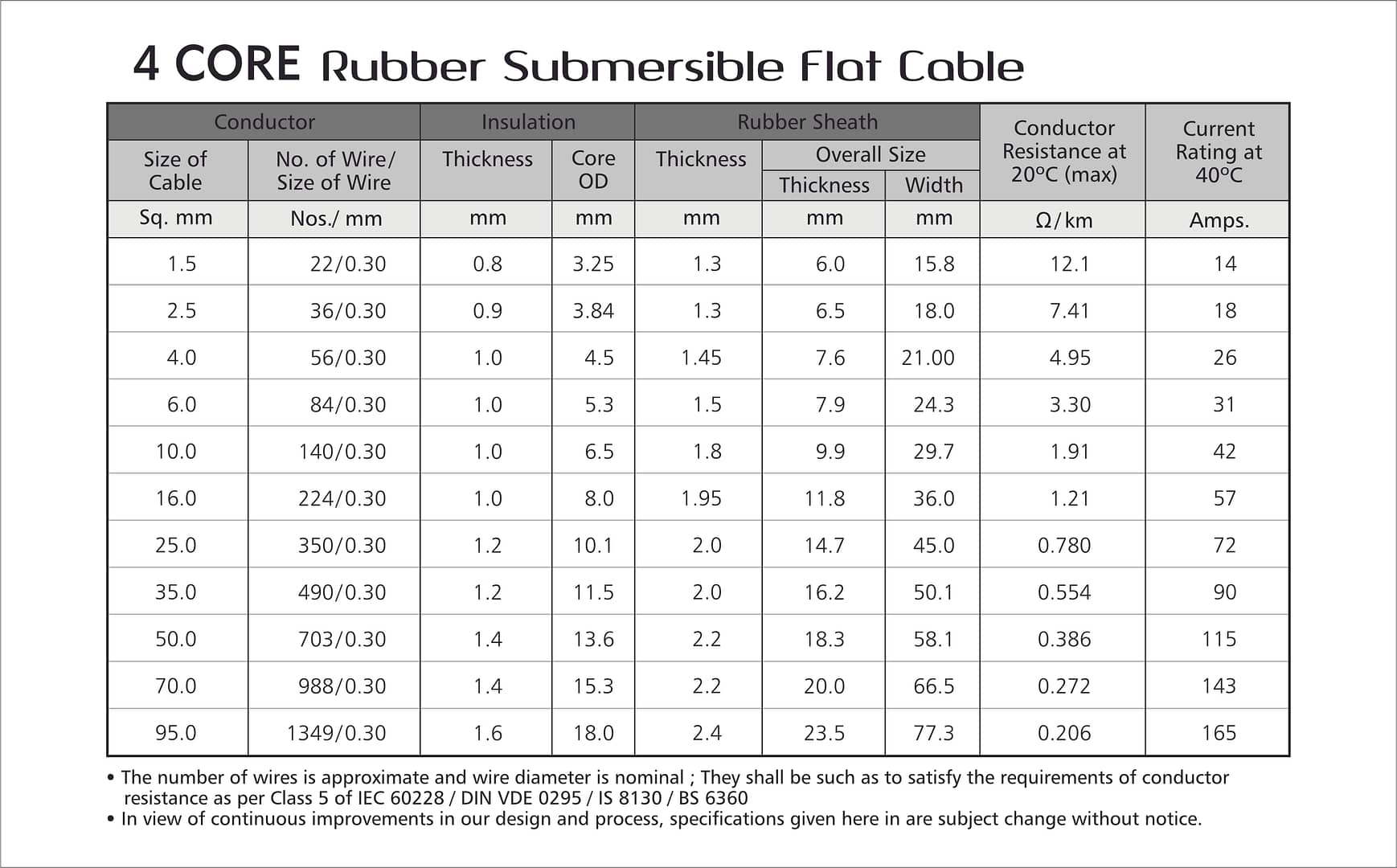

4 Core Rubber Submersible Flat Cable
4 Core Rubber Submersible Flat Cable
– Operating Temperature:- -10°C to max. +90°C
– Nominal voltage:- 1.1 KV
– Test voltage:- 3.0 KV
– Bending radius:- 6 X cable diameter
– DIN VDE 0281 part 810,
– IEC 245 & BS 6007, BS 6899
– Conductor:- Bare bunch copper IS: 8130
– Insulation:- ERP Rubber
– Outer sheath:– ERP Rubber
– Temperature range -40°C To +90°C
– Excellent impact resistance
– Excellent weather resistance
– Ideal for irrigation pump,
– Drinking water supply pumps,
– Submersible pump motor power supply
– As per IS: 694:2010:– Red, yellow, blue, green/black
– As per IEC:60227:– Black, light blue, brown, yellow with green line/ green with yellow line
