3 Core Submersible Flat Cable
3 Core Submersible Flat Cable
– Operating Temperature:- -10°C to max. +90°C
– Nominal voltage:- 1.1 KV
– Test voltage:- 3.0 KV
– Bending radius:– 6 X cable diameter
– BS 6500, IS 694:2010
– Conductor:- Bare bunch copper IS: 8130
– Insulation:- PVC As per IS: 5831
– Outer sheath:- PVC As per IS: 5831
– High flexibility
– Excellent resistance to moisture, abrasion, grace & oil
– Long Life
– Excellent mechanical & electrical properties
– Ideal for irrigation Pumps
– Drinking water supply pumps
– Submersible pump motor power supply

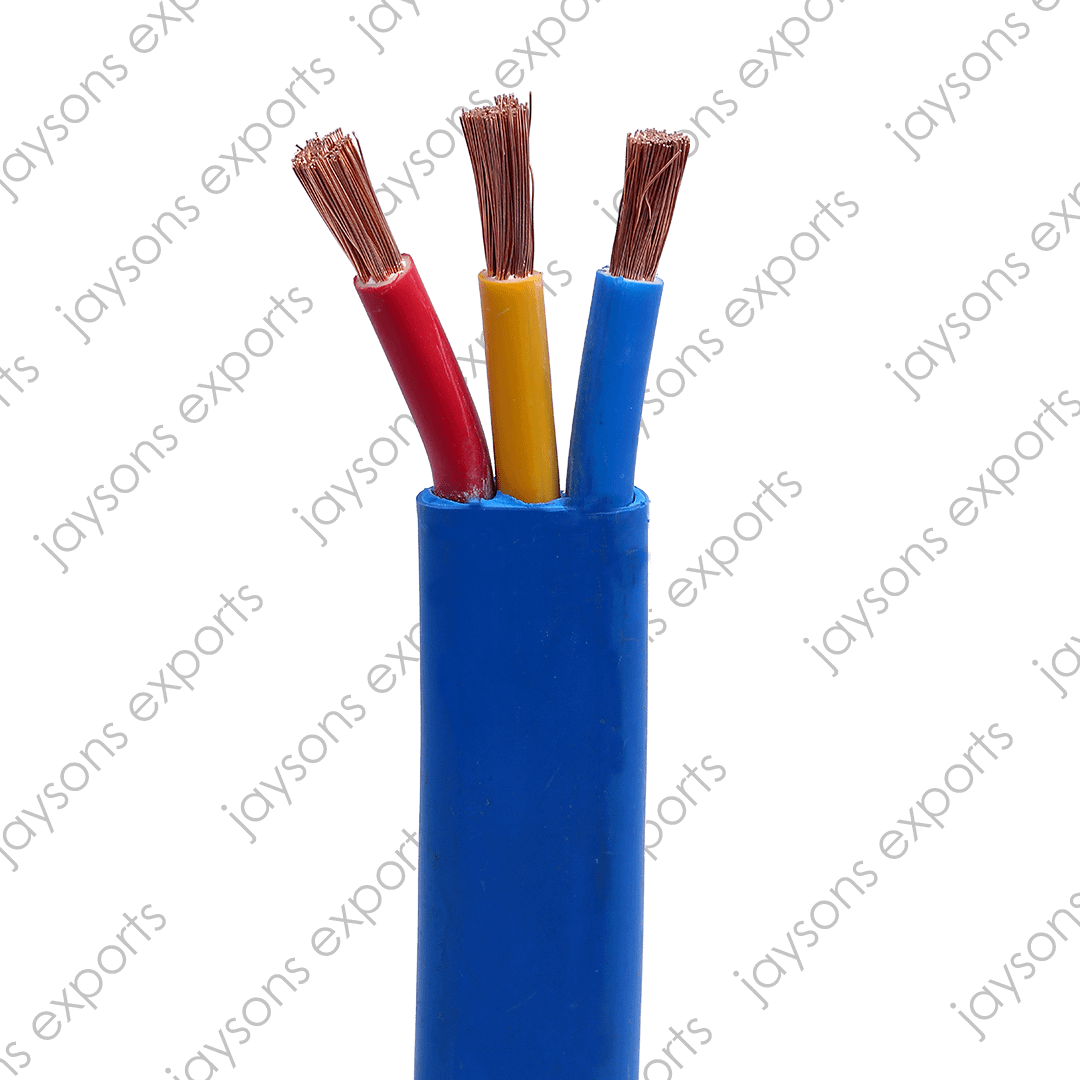

– As per IS : 694:2010:– Red, yellow, blue

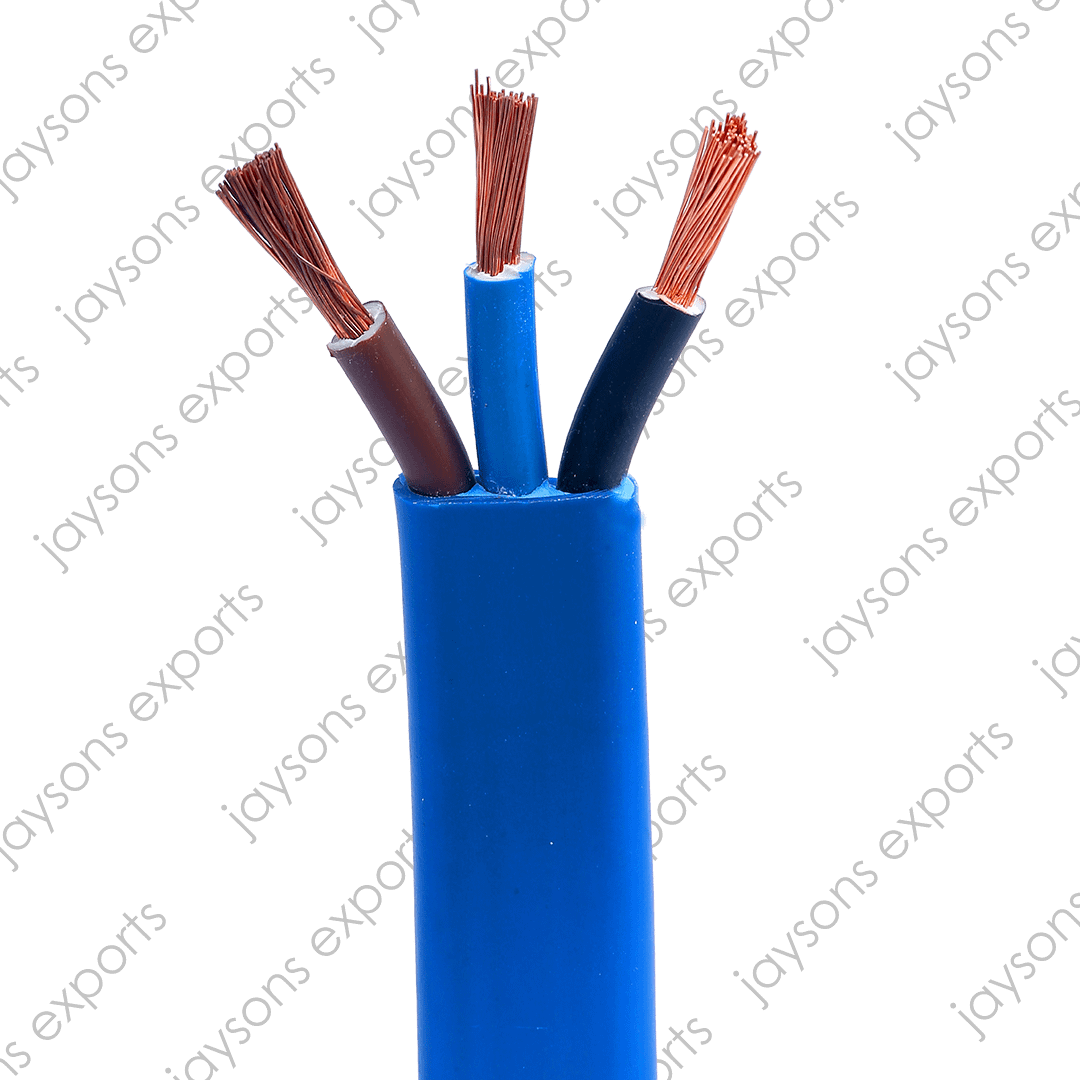

– As per IEC:60227:– Black, blue , brown
